AF-40

Personal Use

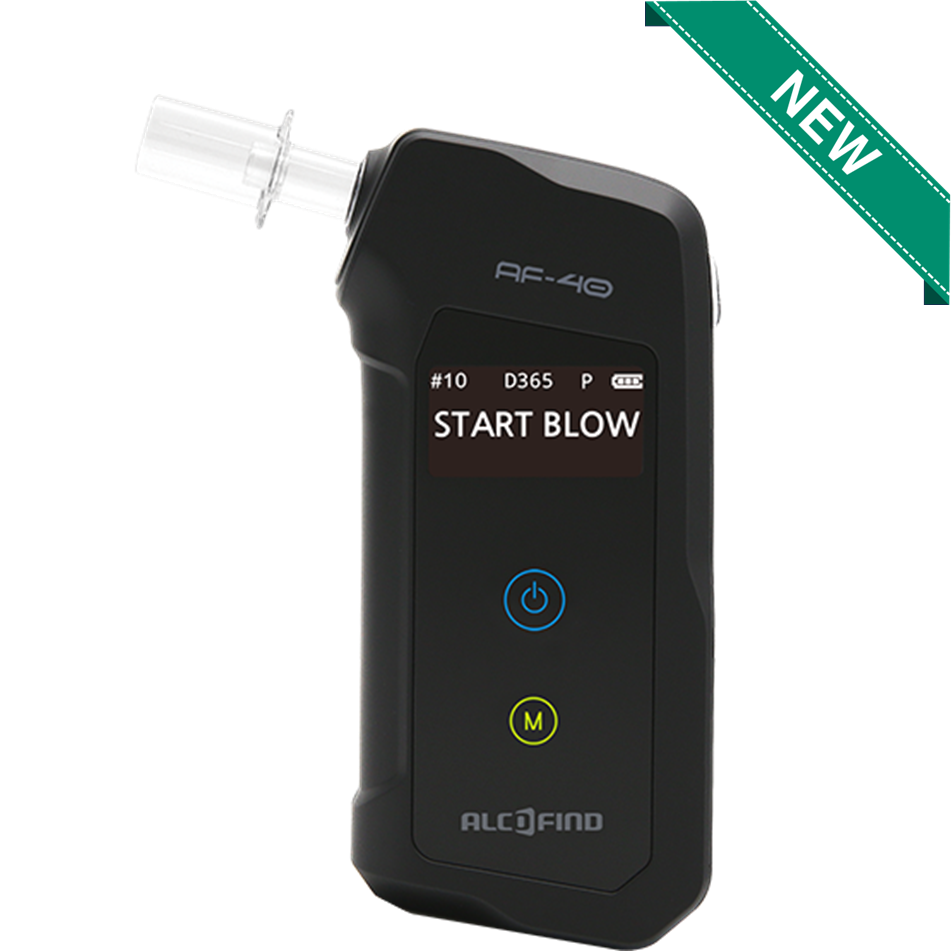

ALCOFIND AF-40 with a premium Fuel Cell Sensor is a professional breathalyzer with extremely high-reliability. The AF-40 enables to check detailed test history through a memory function and adjust operation settings, e.g. alarm level, calibration scheduling, measurement unit, buzzer level, and screen brightness via the menu.



Contents

- ALCOFIND AF-40 breathalyzer
- AAA alkaline battery x 2
- Mouthpiece x 6
- Hard-shell carrying case
- Instruction manual



Key Features

- Premium fuel cell sensor

- OLED display

- Store 10,000 test results with test number, date and time

- Adjustable user setting menu

- Calibration reminder

- Battery level indicator and notification

- Power saving function (automatic power off)

- Test number display

Specification

Measurement range 0.000 ~ 0.500 %BAC
0.00 ~ 5.00 ‰
0.00 ~ 2.50 mg/L
Sensor Premium Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 ‰ (at 0.50 ‰, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 2 s (at 0.000 %BAC), approx. 6 s (at 0.050 %BAC) *Analysis time may vary depending on the test condition and environment.
Display OLED (128 x 64 pixel)
Memory Stores up to 10,000 test results (Including test number, date, time, and result)
Power supply Two AAA alkaline batteries
Demensions
(W*H*D)		 54 x 116 x 23 mm
Weight 90 g (including batteries)
Calibration Period Every 12 months or after 1,000 tests
Operating temperature -5 ~ 50 ℃
