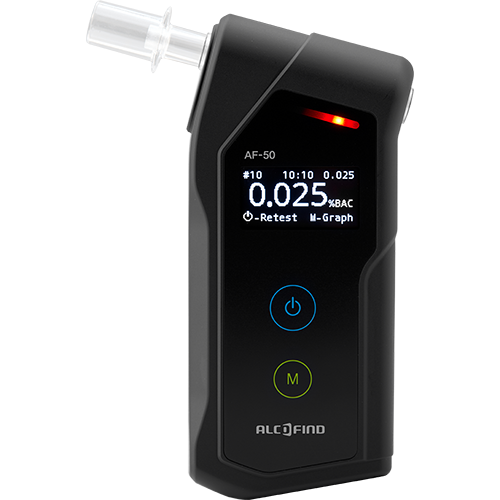

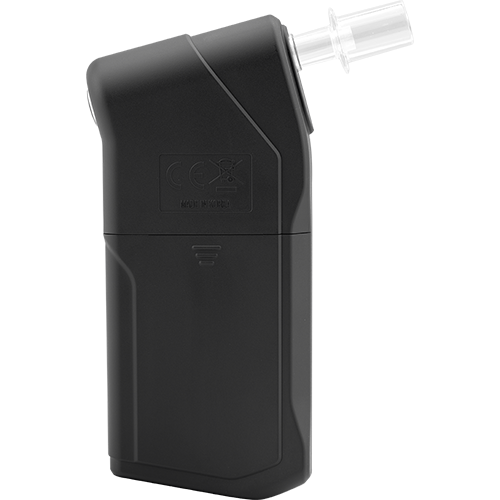

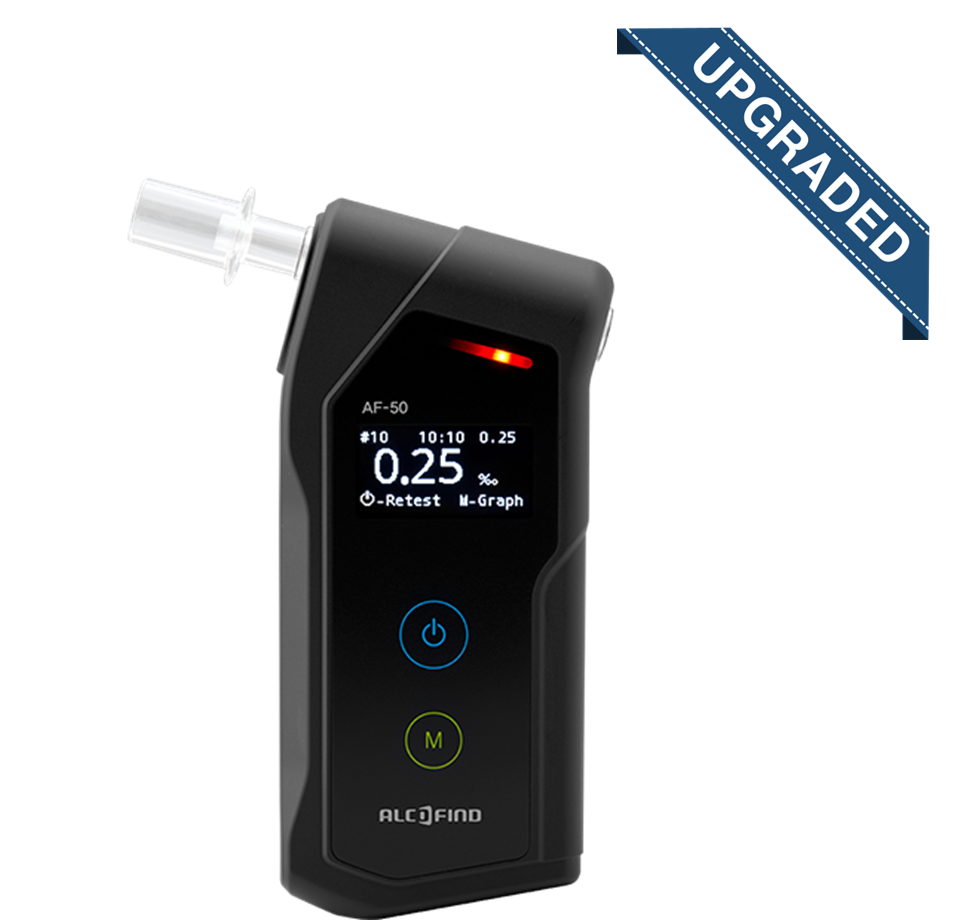

AF-50

Industrial Use

ALCOFIND AF-50 with a premium Fuel Cell Sensor is a professional breathalyzer with extremely high-reliability. The AF-50 enables to check detailed test history through a memory function and adjust operation settings, e.g. alarm level, calibration scheduling, measurement unit, buzzer level, and screen brightness via the menu.

Contents

- ALCOFIND AF-50 breathalyzer
- AA alkaline battery x 2
- Mouthpiece x 6
- Hard-shell carrying case
- Instruction manual

Key Features

- Premium fuel cell sensor
- OLED display
- Store 10,000 test results with test number, date and time
- Adjustable user setting menu
- Calibration reminder
- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display

Specification

Measurement range 0.000 ~ 0.500 %BAC
0.00 ~ 5.00 ‰
0.00 ~ 2.50 mg/L
Sensor Premium Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 mg/L (at 0.50 mg/L, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 4 s (at 0.000 %BAC), approx. 12 s (at 0.050 %BAC)
*Analysis time may vary depending on the test condition and environment.
Display OLED (128 x 64 pixel)
Memory Store 10,000 test results with test number, date and time
Power supply Two AA alkaline batteries
Demensions
(WxHxD)		 60 x 128 x 24 mm
Weight 130 g (including batteries)
Calibration Period Every 12 months or after 1,000 tests
Operating temperature -10 ~ 50 ℃
