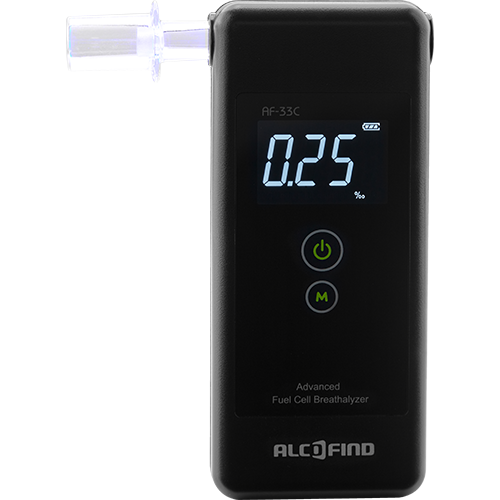

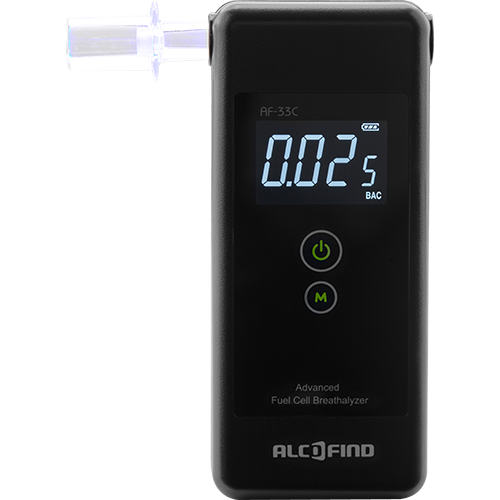

AF-33C

Industrial Use

Equipped with an advanced Fuel Cell Sensor, the ALCOFIND AF-33C can be used for various applications including industrial field. The AF-33C stores 10 test results and comes with a function of Calibration Reminder that helps get on-time calibration by letting users know the remaining days to the next calibration.

Contents

- ALCOFIND AF-33C breathalyzer
- AAA alkaline battery x 2
- Mouthpiece x 6
- Carrying case
- Instruction manual

Key Features

- Advanced fuel cell sensor

- Store 10 test results
- Calibration reminder
- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display

Specification

Measurement range 0.000 ~ 0.500 %BAC
0.00 ~ 5.00 ‰
0.00 ~ 2.50 mg/L
Sensor Advanced Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 mg/L (at 0.50 mg/L, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 6 s (at 0.000 %BAC), approx. 13.5 s (at 0.050 %BAC)
*Analysis time may vary depending on the test condition and environment.
Memory Store 10 test results
Power supply Two AAA alkaline batteries
Demensions
(WxHxD)		 47 x 108 x 17 mm
Weight 85 g (including batteries)
Calibration Period Every 12 months or after 500 tests
Operating temperature 5 ~ 40˚C
