AF-23

Personal Use

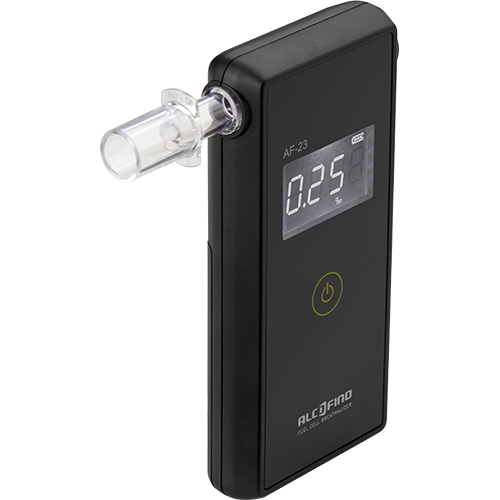

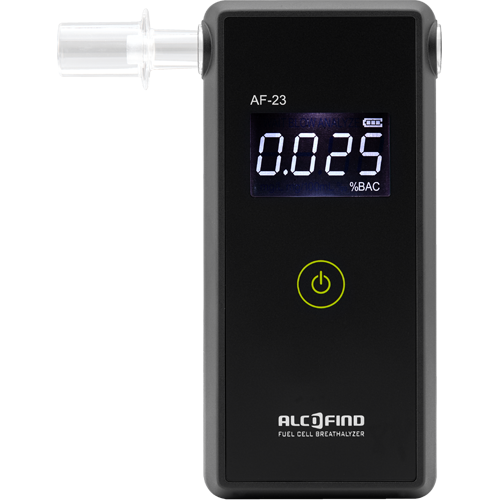

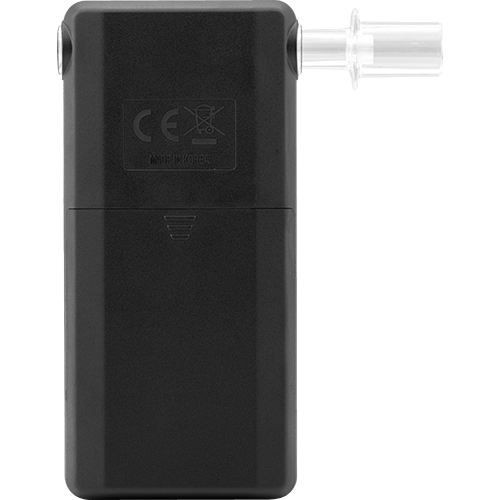

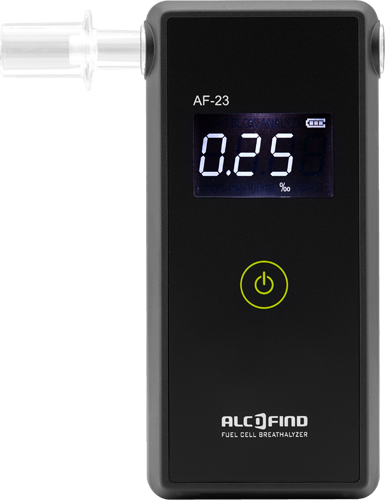

ALCOFIND AF-23, equipped with an advanced Fuel Cell Sensor, is the perfect personal breathalyzer, combining convenience with portability.

Contents

- ALCOFIND AF-23 breathalyzer
- AAA alkaline battery x 2
- Mouthpiece x 3
- Instruction manual

Key Features

- Advanced fuel cell sensor
- Store a previous test result
- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display

Specification

Measurement range 0.000 ~ 0.400 %BAC
0.00 ~ 4.00 ‰
0.00 ~ 2.00 mg/L
Sensor Advanced Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 mg/L (at 0.50 mg/L, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 3.5 s (at 0.000 %BAC), approx. 13.5 s (at 0.050 %BAC)
*Analysis time may vary depending on the test condition and environment.
Memory Store a previous test result
Power supply Two AAA alkaline batteries
Demensions
(WxHxD)		 51 x 109 x 18 mm
Weight 84 g (including batteries)
Calibration period Every 12 months or after 500 tests
Operating temperature 5 ~ 40˚C
