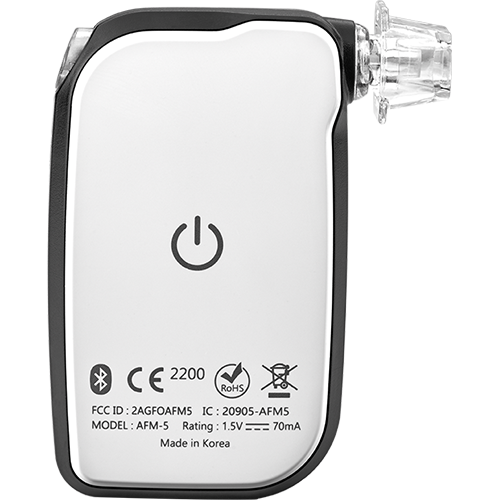

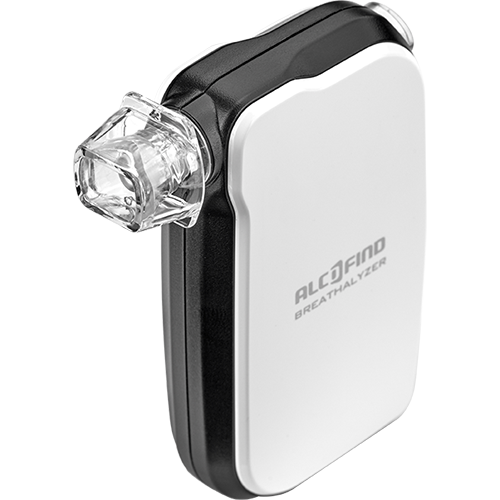

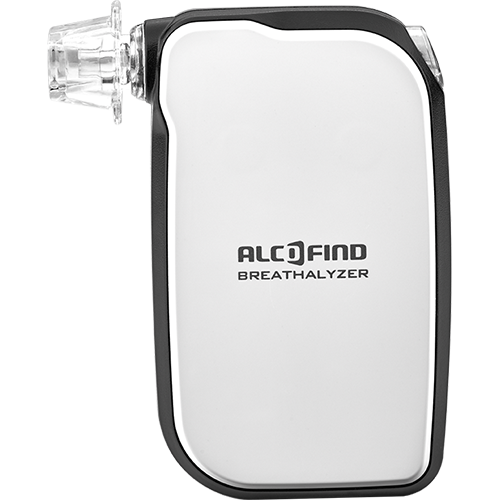

AFM-5

Personal Use

ALCOFIND AFM-5, equipped with an advanced Fuel Cell Sensor, is a smart and versatile breathalyzer as it can utilize two modes (Standalone & APP Mode). With app-enabled feature, the AFM-5 helps you understand drinking patterns and make smart drinking decisions.

Contents

- ALCOFIND AFM-5 breathalyzer

- ALCOFIND App
- AAA alkaline battery
- Mouthpiece x 6

- Carrying case
- Instruction manual

Key Features

- Advanced fuel cell sensor

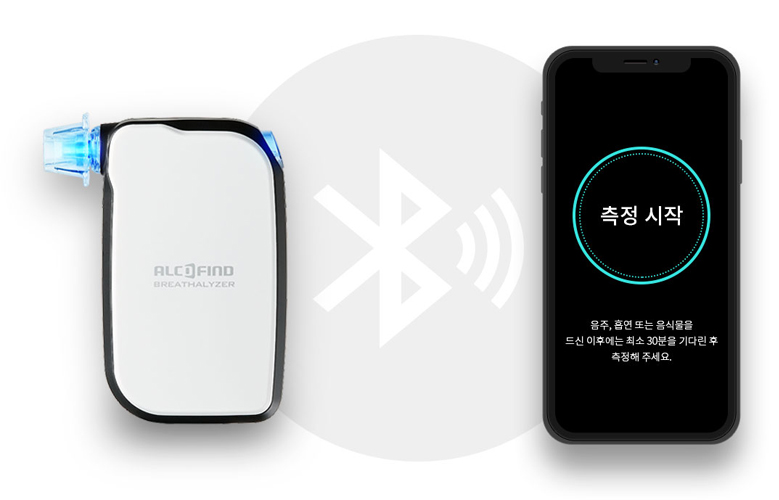

- Link with smartphones through Bluetooth communication
- Duel operation mode (Standalone / App modes)

- Manage and share test data, and adjust operation settings through the ALCOFIND App

- Calibration reminder

- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display

Specification

Measurement range 0.000 ~ 0.400 %BAC
0.00 ~ 4.00 ‰
0.00 ~ 2.00 mg/L
Sensor Advanced Fuel Cell Sensor
Accuracy ±0.005 %BAC (at 0.100 %BAC, at 25 ℃)
±0.05 ‰ (at 1.00 ‰, at 25 ℃)
±0.025 mg/L (at 0.50 mg/L, at 25 ℃)
Analysis time
(at 25 ℃)		 Approx. 5.5 s (at 0.000 %BAC), approx. 11.5 s (at 0.050 %BAC)
*Analysis time may vary depending on the test condition and environment.
Operation mode Dual Mode (Standalone / APP)
Power supply One AAA alkaline battery
Wireless communication Bluetooth 4.0 LE
Demensions
(WxHxD)		 41.5 x 68 x 16.9 mm
Weight 43 g (including batteries)
Calibration period Every 12 months or after 500 tests
Operating temperature 5 ~ 40 ℃
