AF-50U

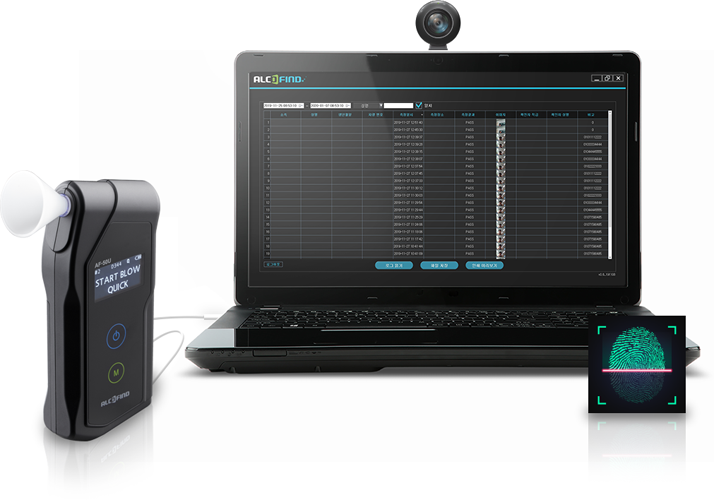

Alcohol Management SystemEquipped with a premium Fuel Cell Sensor, the ALCOFIND AF-50U is a PC-based system designed to check and manage the alcohol level of employees with a quick test in various workplaces.

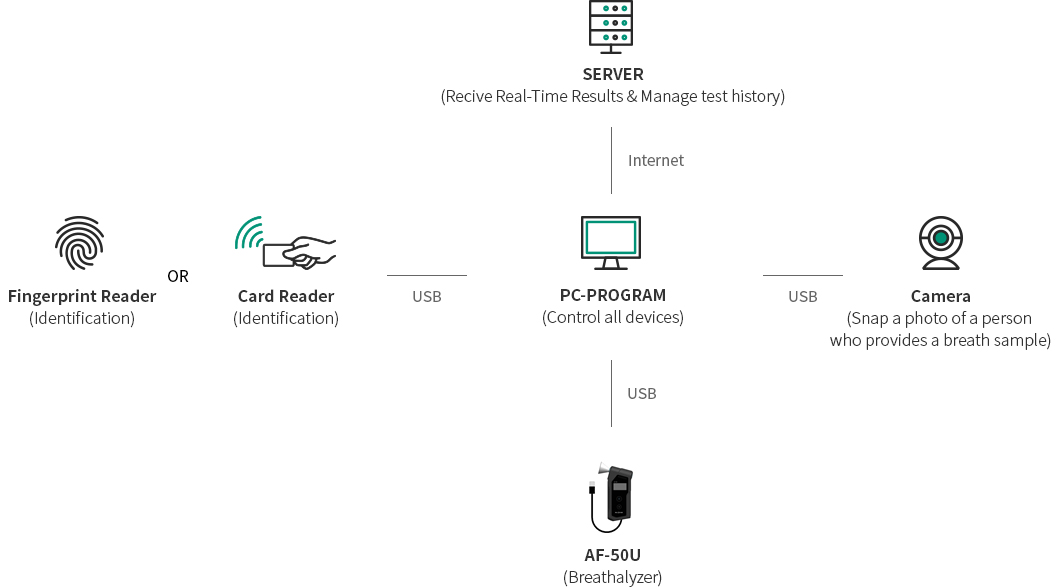

System Diagram
Contents
- Calibration reminder
- ALCOFIND AF-50U breathalyzer
- ALCOFIND PC-software
- Mouthpiece for Quick Test x 5
- Mouthpiece for Normal Test x 20
- Camera (Optional)
- ID card reader or Fingerprint reader (Optional)
- Instruction manual
Key Features
- Premium fuel cell sensor
- Dual test mode (Normal / Quick)

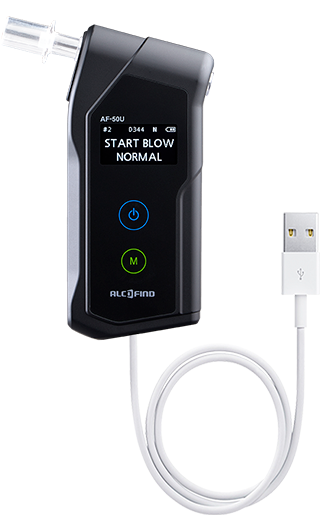

(Normal Mode: Display the actual concentration value by measuring accurate BAC)

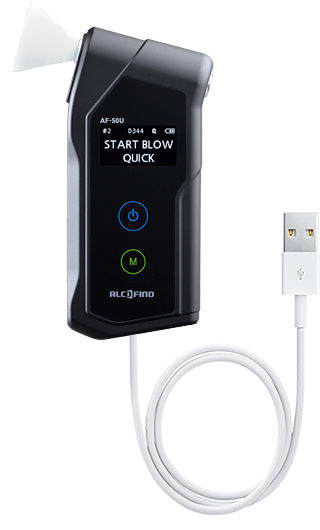

(Quick Mode: Display test result as PASS/FAIL according to the set criteria by quickly measuring if the subject has alcohol in their body)
- Prevent circumvention by capturing the image of subject when testing is completed (optional)
- User authentication function through card reader or fingerprint reader connectivity (optional)
- Manage and download test data, transfer test results to server, register user information, and adjust operation settings through the ALCOFIND software
- Calibration reminder
- Test number display
ALCOFIND Software for Alcohol Management System
1. Software for controlling the ALCOFIND Alcohol Management System
- Control the complete measurement process from breath testing with user authentication to data transmission
- User registration and operation function settings
2. Software for managing test data received from the ALCOFIND Alcohol Management System
- Real-time storage of test results with registered user information, date and time
- Download and export data to a PC
Specification
| Measurement range | 0.000 ~ 0.500 %BAC 0.00 ~ 5.00 ‰ 0.00 ~ 2.50 mg/L |
|---|---|
| Sensor | Premium Fuel Cell Sensor |
| Accuracy (Normal Mode) |
±0.005 %BAC (at 0.100 %BAC, at 25 ℃) ±0.05 ‰ (at 1.00 ‰, at 25 ℃) ±0.025 mg/L (at 0.50 mg/L, at 25 ℃) |
| Analysis time (at 25 ℃) |
Quick Test Mode: approx. 2.5 s (at 0.000 %BAC), approx. 8 s (at 0.050 %BAC) Normal Test Mode: approx. 4 s (at 0.000 %BAC), approx. 8 s (at 0.050 %BAC) *Analysis time may vary depending on the test condition and environment. |
| Test mode | Dual Mode (Quick / Normal) |
| Alarm level for quick test mode | Settable range: 0.010 ~ 0.050 %BAC 0.10 ~ 0.50 ‰ 0.05 ~ 0.25 mg/L |
| Display | OLED (128 x 64 pixel) |
| Power supply | AF-50U – USB 5 V ID card reader : USB 5 V Camera : USB 5 V Fingerprint reader : USB 5 V |
| Demensions (WxHxD) |
60 x 128 x 24 mm |
| Weight | 82 g |
| Calibration Period | Every 6 months |
| Operating temperature | 5 ~ 40 ℃ |
| Options | ID card reader or Fingerprint reader Camera |

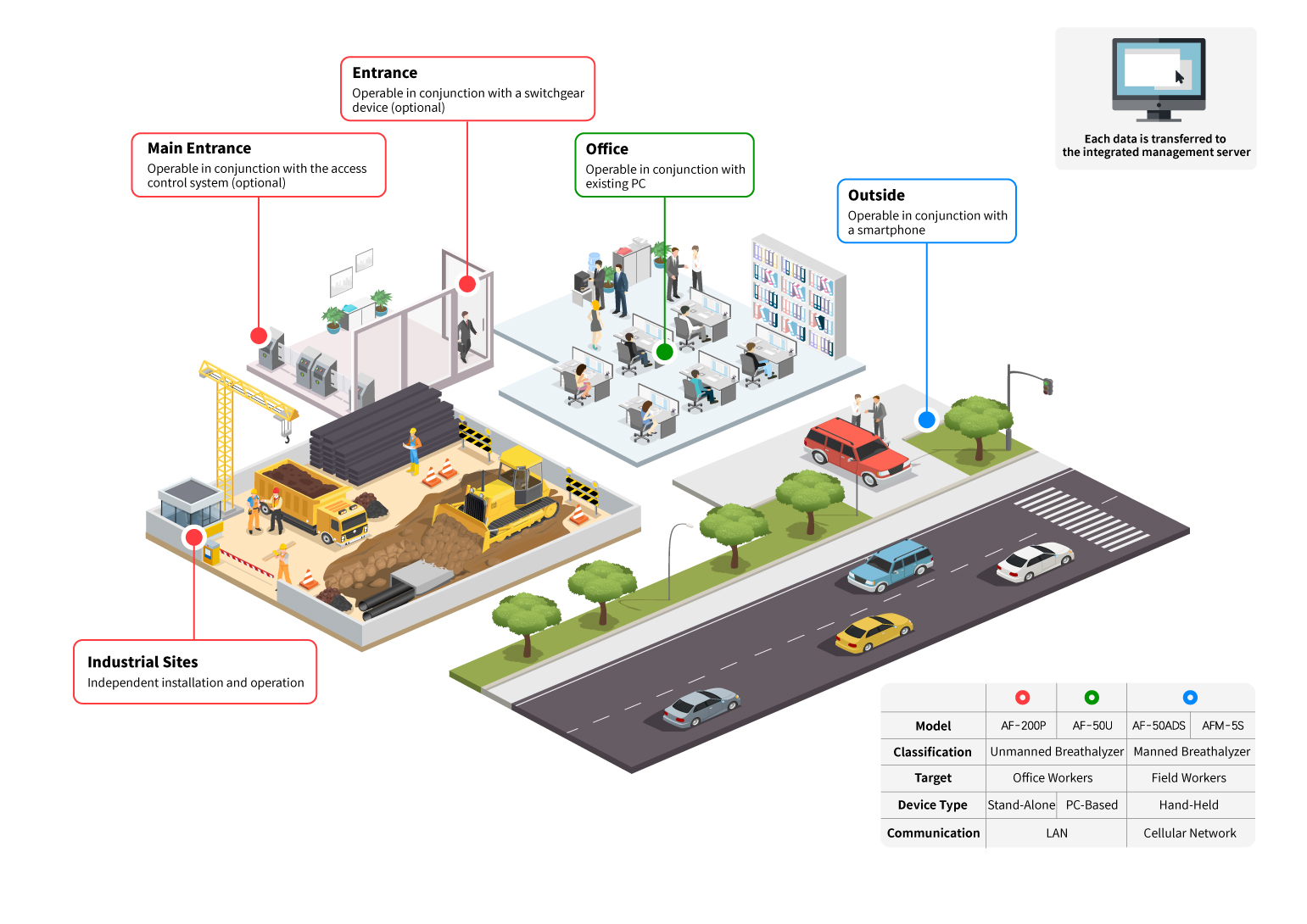

AMS(Alcohol Management System) Usage Scenario
