AF-50ADS

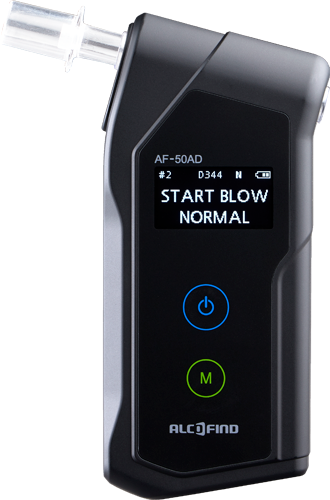

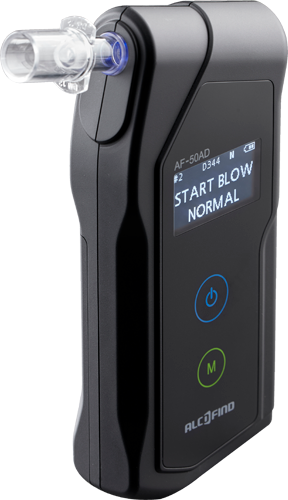

Alcohol Management SystemEquipped with a premium Fuel Cell Sensor, the ALCOFIND AF-50ADS is a portable hand-held breathalyzer designed to check and manage the alcohol level of employee working outside by connecting with the App provided.

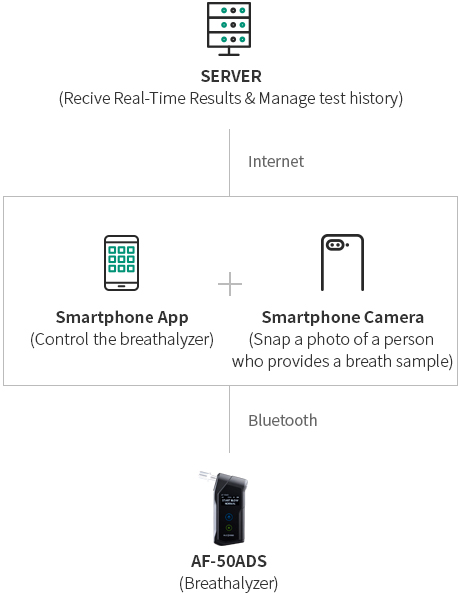

System Diagram
Contents
- ALCOFIND AF-50ADS breathalyzer
- ALCOFIND PC-software and App
- AA alkaline battery x 2
- Mouthpiece x 6
- Hard protective carrying case
- Instruction manual
Key Features
- Premium fuel cell sensor
- OLED display

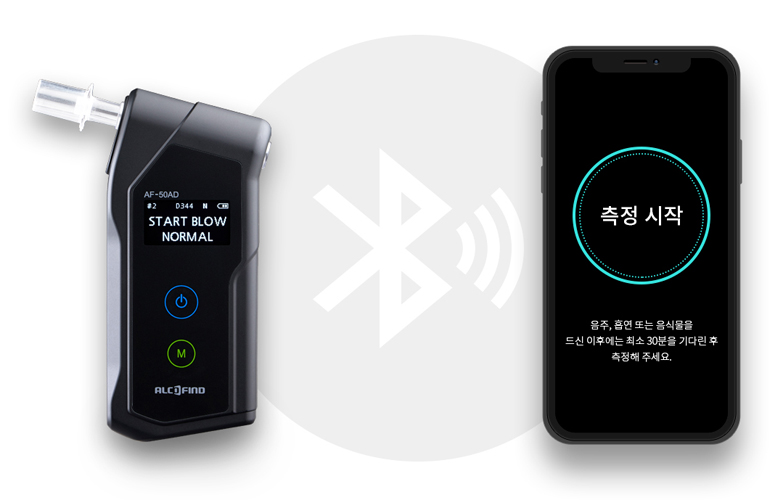

- Link with smartphones through Bluetooth communication
- Duel operation mode (Standalone / App modes)
- Store 2,000 test results with test number, date and time
- Adjustable user setting menu
- Prevent circumvention by capturing the image of subject when testing is completed (App mode)
- Manage and share test data, and adjust operation settings through the ALCOFIND App and Software
- Calibration reminder
- Battery level indicator and notification
- Power saving function (automatic power off)
- Test number display
ALCOFIND Software for Alcohol Management System
1. App for controlling the ALCOFIND Alcohol Management System
- Control the complete measurement process from breath testing to data transmission
- User registration and operation function settings
2. Software for managing test data received from the ALCOFIND Alcohol Management System
- Real-time storage of test results with registered user information, date and time
- Download and export data to a PC
Specification
| Measurement range | 0.000 ~ 0.500 %BAC 0.00 ~ 5.00 ‰ 0.00 ~ 2.50 mg/L |
|---|---|
| Sensor | Premium Fuel Cell Sensor |
| Accuracy (Normal Mode) |
±0.005 %BAC (at 0.100 %BAC, at 25 ℃) ±0.05 ‰ (at 1.00 ‰, at 25 ℃) ±0.025 mg/L (at 0.50 mg/L, at 25 ℃) |
| Analysis time (at 25 ℃) |
Quick Test Mode: approx. 2.5 s (at 0.000 %BAC), approx. 8 s (at 0.050 %BAC) Normal Test Mode: approx. 4 s (at 0.000 %BAC), approx. 8 s (at 0.050 %BAC) *Analysis time may vary depending on the test condition and environment. |
| Operation mode | Dual Mode (Standalone / APP) |
| Test mode | Dual Mode (Quick / Normal) *Normal Test Mode is only available in APP mode. |
| Alarm level for quick test mode | Settable range: 0.010 ~ 0.050 %BAC 0.10 ~ 0.50 ‰ 0.05 ~ 0.25 mg/L |
| Display | OLED (128 x 64 pixel) |
| Memory | Store 2,000 test results with test number, date and time |
| Power supply | Two AA alkaline batteries |
| Wireless communication | Bluetooth 4.2 LE |
| Demensions (WxHxD) |
60 x 128 x 24 mm |
| Weight | 130 g (including batteries) |
| Calibration Period | Every 6 months |
| Operat | -5 ~ 40 ℃ |

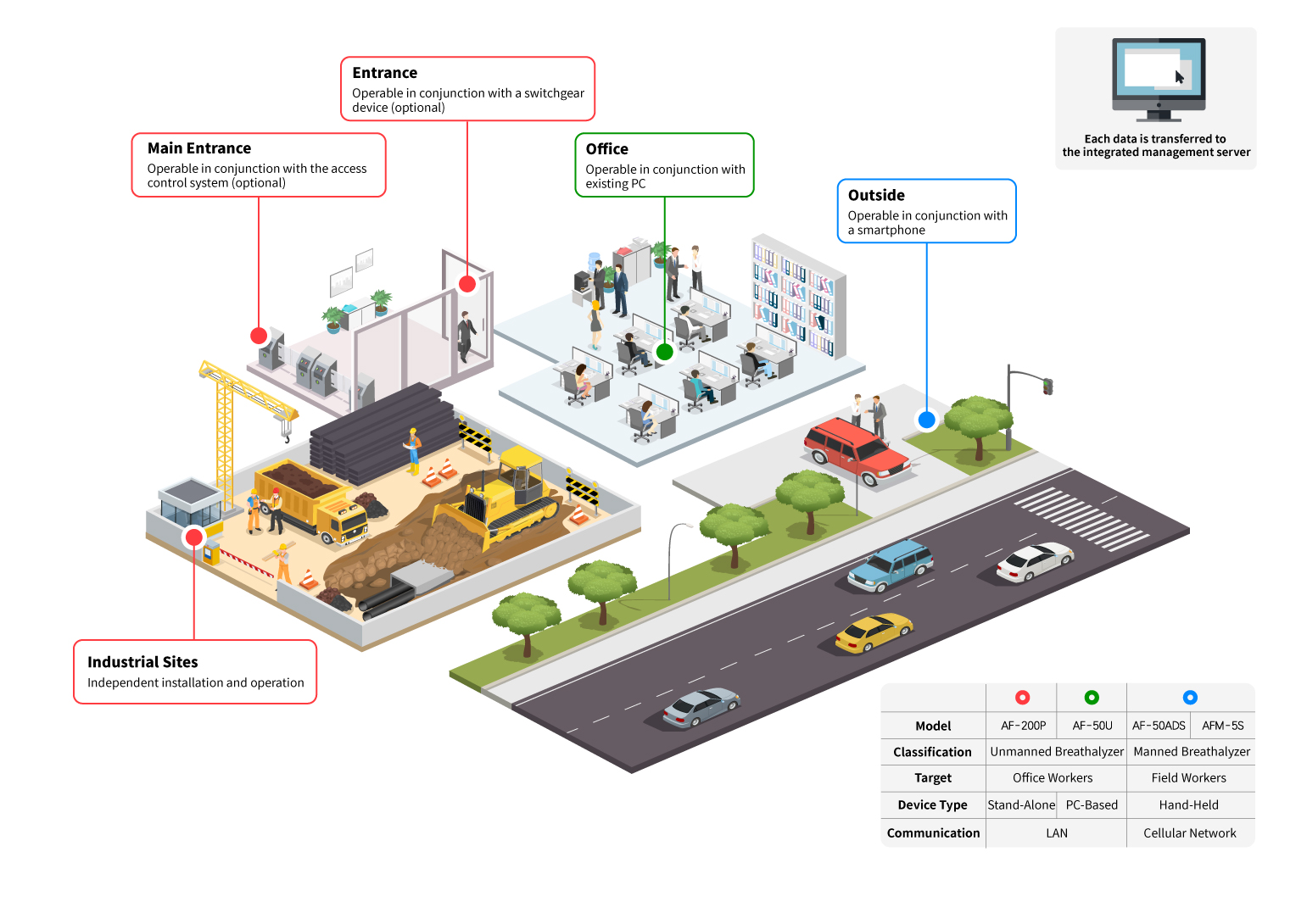

AMS(Alcohol Management System) Usage Scenario
