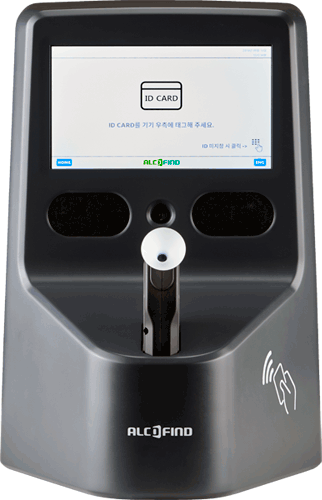

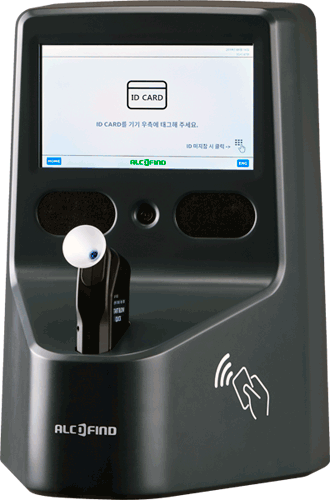

AF-200P
Alcohol Management SystemEquipped with a premium Fuel Cell Sensor, the ALCOFIND AF-200P is an interactive kiosk designed to check and manage the alcohol level of employees with a quick test in various workplaces.

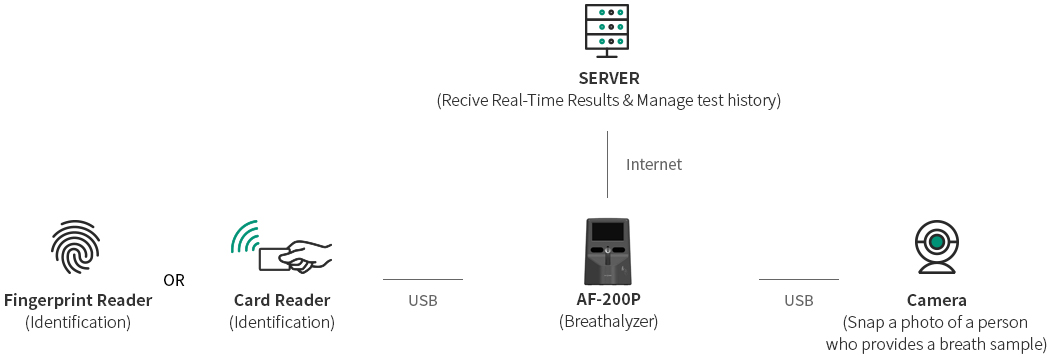

System Diagram
Contents
- ALCOFIND AF-200P main body

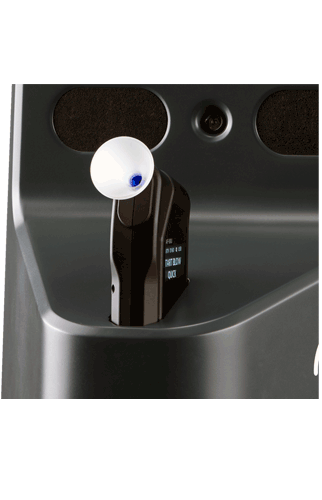

- ALCOFIND AF-50U breathalyzer
- Mouthpiece for Quick Test x 5
- Mouthpiece for Normal Test x 20
- Power cable
- ID card reader or Fingerprint reader (Optional)
- Instruction manual
Key Features
- Premium fuel cell sensor
- 7-inch color touch screen
- Dual test mode (Normal / Quick)
(Normal Mode: Display the actual concentration value by measuring accurate BAC)
(Quick Mode: Display test result as PASS/FAIL according to the set criteria by quickly measuring if the subject has alcohol in their body)
- Prevent circumvention by capturing the image of subject when testing is completed
- User authentication function through card reader or fingerprint reader connectivity (optional)
- Manage and download test data, transfer test results to server, register user information, and adjust operation settings through the ALCOFIND software
- Prevent false tests and provides high test reliability by guiding the ideal breathing position to deduce accurate test results through an embedded distance sensor during test in Quick Test Mode
- Calibration reminder
- Test number display
ALCOFIND Software for Alcohol Management System
1. Software for controlling the ALCOFIND Alcohol Management System
- Control the complete measurement process from breath testing with user authentication to data transmission
- User registration and operation function settings
2. Software for managing test data received from the ALCOFIND Alcohol Management System
- Real-time storage of test results with registered user information
- Download and export data to a PC
Specification
| Measurement range | 0.000 ~ 0.500 %BAC 0.00 ~ 5.00 ‰ 0.00 ~ 2.50 mg/L |
|---|---|
| Sensor | Premium Fuel Cell Sensor |
| Accuracy (Normal Mode) | ±0.005 %BAC (at 0.100 %BAC, at 25 ℃) ±0.05 ‰ (at 1.00 ‰, at 25 ℃) ±0.025 mg/L (at 0.50 mg/L, at 25 ℃) |
| Analysis time (at 25 ℃) | Quick Test Mode: approx. 2 s (at 0.000 %BAC), approx. 7 s (at 0.050 %BAC) Normal Test Mode: approx. 3 s (at 0.000 %BAC), approx. 7 s (at 0.050 %BAC) *Analysis time may vary depending on the test condition and environment. |
| Test mode | Dual Mode (Quick / Normal) |
| Alarm level for quick test mode | Settable range: 0.010 ~ 0.050 %BAC 0.10 ~ 0.50 ‰ 0.05 ~ 0.25 mg/L |
| Display | 7-inch color touch screen |
| Memory | 32 GB |
| Ultrasonic distance sensor | Built-in |
| Camera | Built-in |
| Power supply | 100 V~220 V 50/60 Hz 1.2 A Max |
| Demensions (WxHxD) | 217 x 232 x 308 mm |
| Weight | 2,077 g |
| Calibration Period | Every 6 months |
| Operating | 5 ~ 40 ℃ |

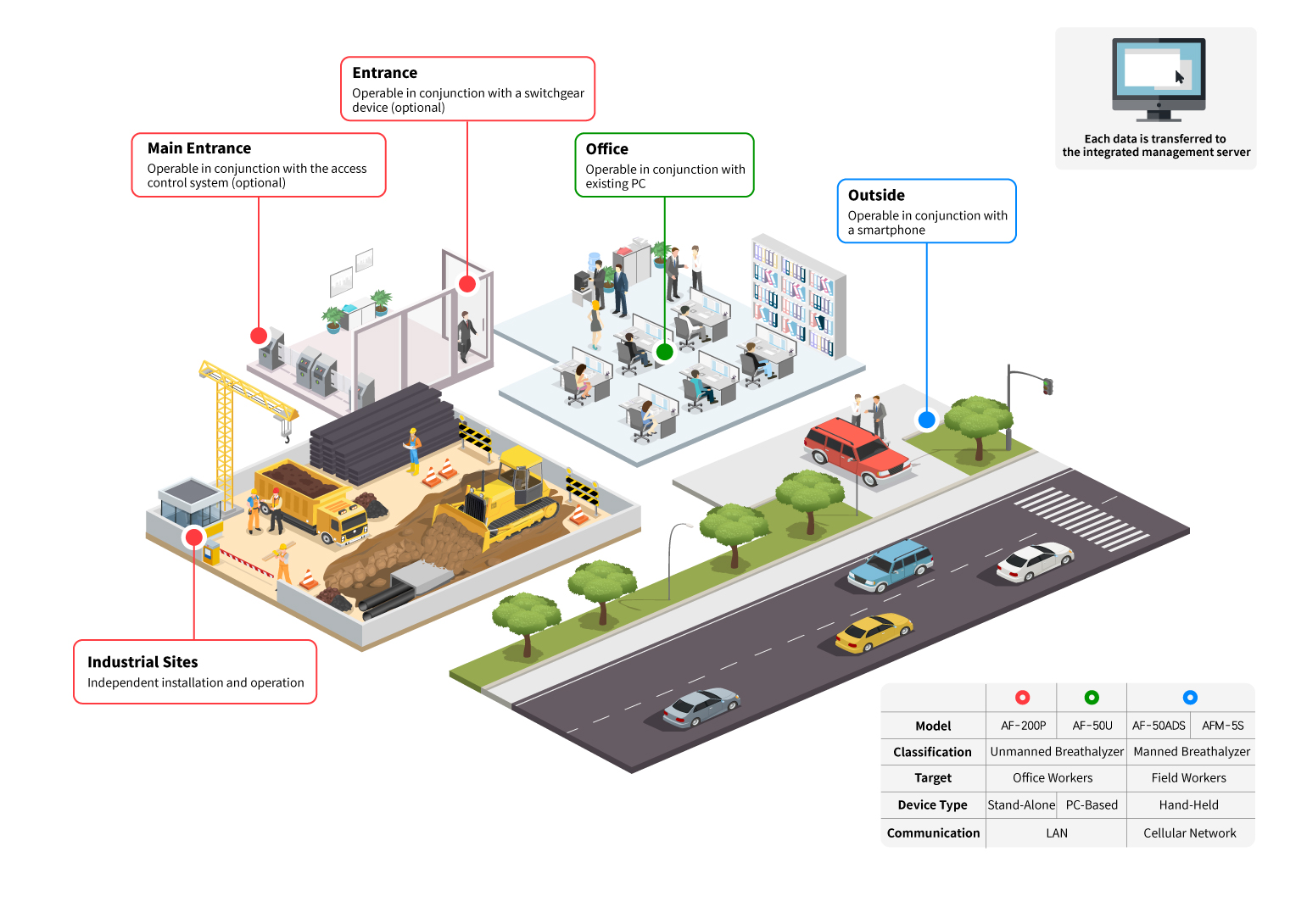

AMS(Alcohol Management System) Usage Scenario
